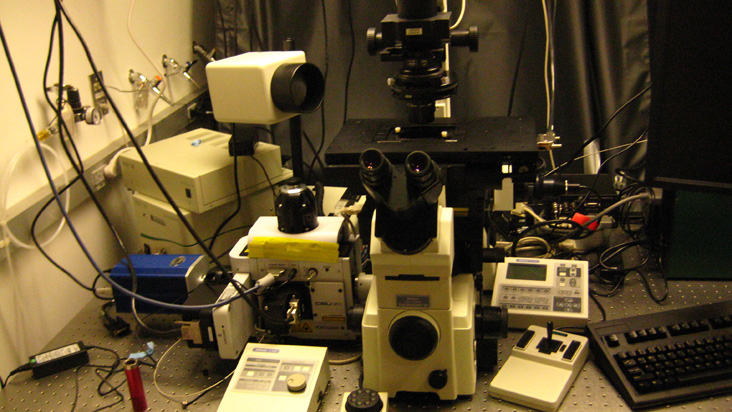

Multi-spectral Spinning Disk Confocal Microscope with Mosaic FRAP

confocal

Specifications and Manuals

• Yokogawa CSU-X1 (2 camera port option) confocal scanhead (manual) • Lumen 200- 200 Watt Metal halide light source (Prior) (manual)
• Nikon Eclipse Ti-PFS inverted microscope (manual) • Proscan II XY linear encoded motarized stage (Prior) (manual)
• Photonic Instruments Mosaic FRAP illuminator (405 nm laser) • Prior Transmitted Shutter
• Spectral Applied Research Laser Merge Module (491 nm, 561 nm, and 643 nm Lasers) (manual) • NevTek air stream stage incubator
• 60x/1.2 NA Water, 100x/1.4 NA Nikon lenses • Molecular Devices MetaMorph software
• Photometrics Coolsnap HQ2 CCD camera (manual) (brochure) • Vibration-isolation table (Thor labs)



Reverse Dichroics in CSUX head:
Inverse dichroic for 405/488/568/647     Semrock DI01-T405/488/568/647-13X15X0.5
Emission Filters in CSUX: Em. low/high pass (nm)
Emission Filter 525/50M 500/550   Chroma ET525/50M
Emission Filter 605/70M 570/640   Chroma ET605/70M
Emission Filter 700/75M 664/737   Chroma ET700/75M
Cubes in Nikon Turret: Ex. Em.
Texas Red 532/582 604/644 Semrock TXRed-4040B-NTE
GFP 457/487 502/538 Semrock GFP-3035B-NTE
epi-block consisting of blank cube

(up)

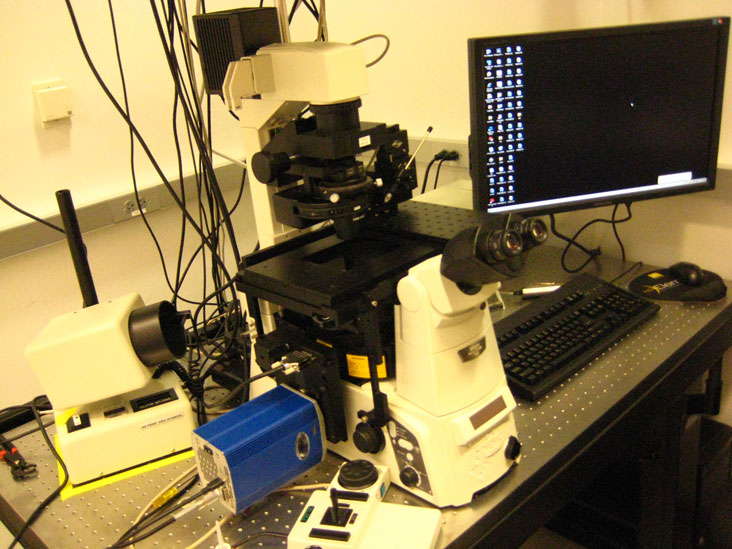

Multimode High Resolution Epi-fluorescence Microscope for Micromanipulation

widefield

Specifications and Manuals

• Nikon Eclipse Ti-PFS inverted microscope (manual) • Photometrics Coolsnap HQ2 CCD camera (manual)
• Nikon White Light TIRF • Lumen Pro-200 Watt Metal halide light source (Prior) (manual)
• Motorized Micromanipulator (Sutter MP-285) (manual)
(reference manual)		 • Proscan II XY linear encoded motarized stage (Prior) (manual)
• Xenoworks Microinjector • Prior Transmitted Shutter
• 40x/1.0 NA Oi • NevTek air stream stage incubator
• 60x/1.2 NA Water • Molecular Devices MetaMorph software
  • Vibration-isolation table (Thor labs)
